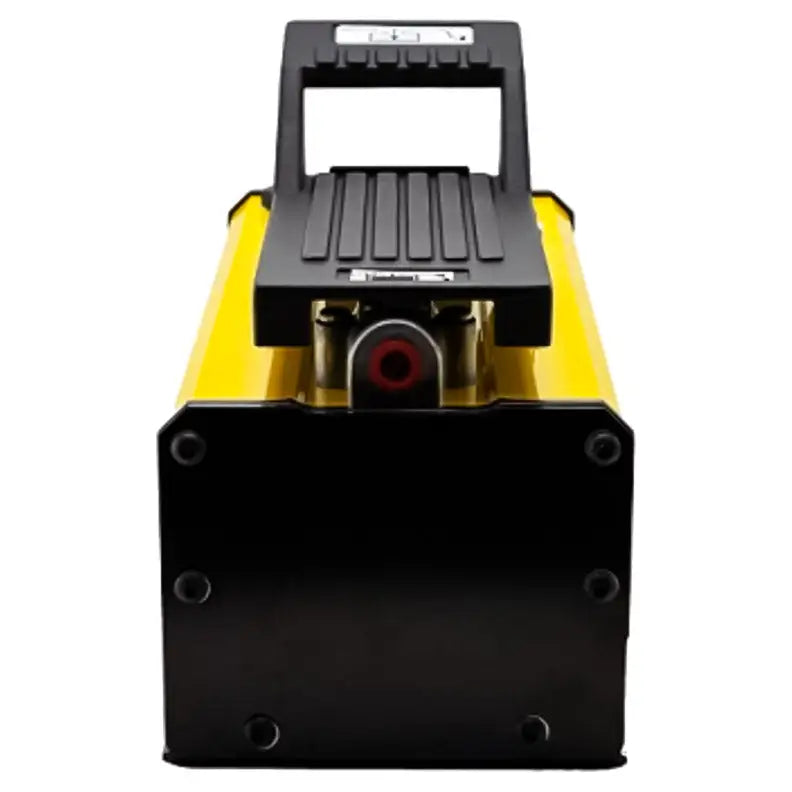

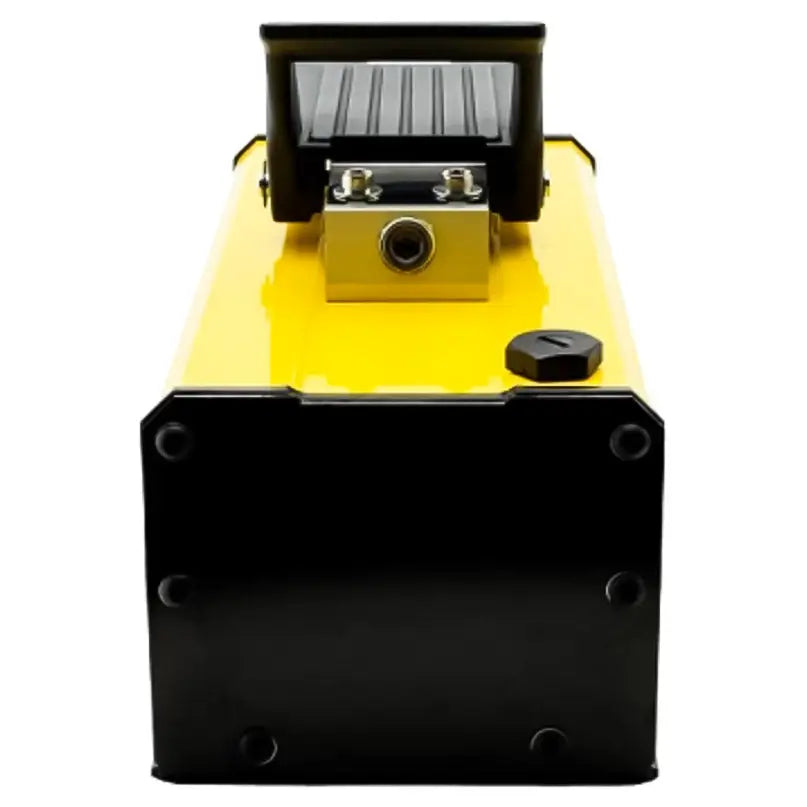

ESCO 1/2 Gallon (2 Qt) Air Hydraulic Pump - Model 10518 - Heavy Duty Hydraulic Fluid Transfer for Automotive, Industrial & Farm Equipment

$310.72

$564.95

Safe 45%

ESCO 1/2 Gallon (2 Qt) Air Hydraulic Pump - Model 10518 - Heavy Duty Hydraulic Fluid Transfer for Automotive, Industrial & Farm Equipment

ESCO 1/2 Gallon (2 Qt) Air Hydraulic Pump - Model 10518 - Heavy Duty Hydraulic Fluid Transfer for Automotive, Industrial & Farm Equipment

$310.72

$564.95

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

21 people viewing this product right now!

SKU: 33193046

Guranteed safe checkout

Description

The ESCO Pro Series 1/2 gallon air hydraulic pump is specifically designed for automotive, light truck, and heavy-duty applications. This pump is constructed with the user in mind as a compact, lightweight air hydraulic pump solution that delivers a powerful punch, requiring only 80 PSI for 10,000 PSI of operating hydraulic pressure to power even the heaviest of cylinders, ram, bead breakers, and more. Built-in exhaust muffler promotes safer, quieter operation along with a robust foot pedal providing hand-free pumping and release of load. It is manufactured with the highest quality parts and components designed to withstand rigorous use in any environment.

ESCO air hydraulic pumps are designed with fully serviceable pump motors, allowing for economical repairs and maintenance. The aluminum reservoir is lightweight and durable for field, shop, and mobile applications.

Features:

For use with various hydraulic rams, cylinders, presses, bead breakers, and other hydraulic equipment require 10,000 PSI for operation.
It is equipped with an air exhaust muffler for the quiet pumping of the air motor.
Air and oil inlet filters for reducing the risk of damage from contamination.
Durable, lightweight design great for service trucks, shop environments, or out in the field.
Internal pressure relief valve system/load limit device for overload protection.
Foot pedal design - for hands-free use of hydraulic pump.
It is engineered with durable, lightweight, and corrosive-resistant plastic components - increasing the life of the air motor and hydraulic pump.
These are designed with mountable feet for service trucks, shops, presses, or other hydraulic applications.
Includes installable fluid level dipstick to check that the appropriate amount of hydraulic fluid is installed.
Hydraulic hose sold separately.

Specs:

Hydraulic Pressure Rating: 10,000 PSI
Usable Oil Capacity (Cubic In.): 135 cu. in.
Output Flow Rate No Load: 80.5 cu. in.
Output Flow Rate Load: 12.8 cu. in.
Air Pressure Range: 40-170 psi
Air Consumption (scfm): 24 scfm
Valve Function: Increase Hydraulic Fluid Pressure, Release Hydraulic Fluid Pressure
Sound Level (dBa): 85 dBa
Reservoir Material: Aluminum
Air Inlet: 1/4in-18 NPT
Hydraulic Hose Inlet: 3/8in-18 NPTF
Dimensions (Product): 12.5 (L) x 5.75 (W) x 8 (H) in.
Dimensions (Packaging): 15 (L) x 7 (W) x 8.5 (H) in.
Bottom Plate Screw Hole Size (4): 3/8 in.
Bottom Plate Length (from hole center): ~11.73 in.
Bottom Plate Width (from hole center): ~4.33 in.
Weight: 22 lbs.
Warranty: 3-Year Extended Warranty
