ESCO 10543 Liquid Transfer Pump for Calcium Solutions - Heavy Duty Chemical Pump for Industrial, Agricultural, and Laboratory Use

$750.75

$1365

Safe 45%

ESCO 10543 Liquid Transfer Pump for Calcium Solutions - Heavy Duty Chemical Pump for Industrial, Agricultural, and Laboratory Use

ESCO 10543 Liquid Transfer Pump for Calcium Solutions - Heavy Duty Chemical Pump for Industrial, Agricultural, and Laboratory Use

$750.75

$1365

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

8 people viewing this product right now!

SKU: 68869344

Guranteed safe checkout

Description

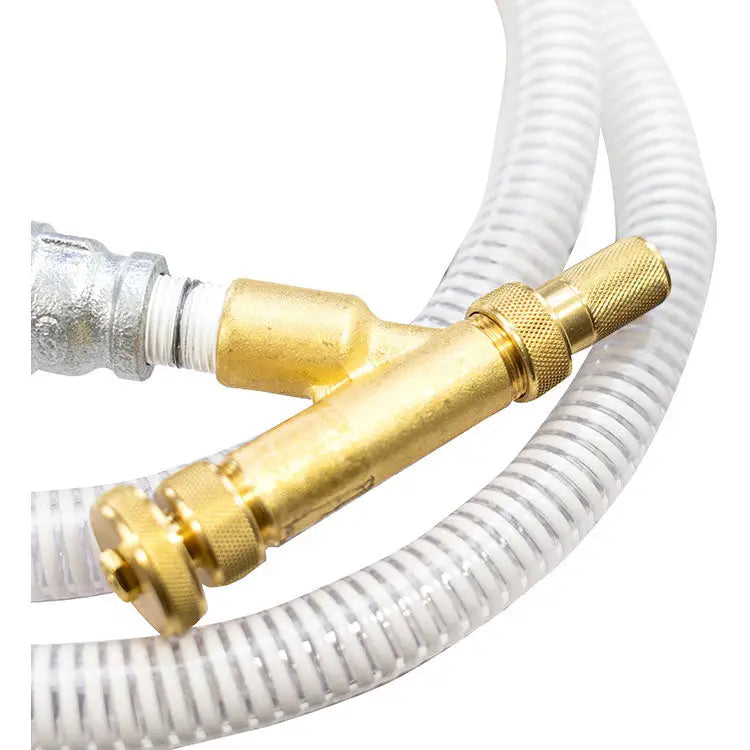

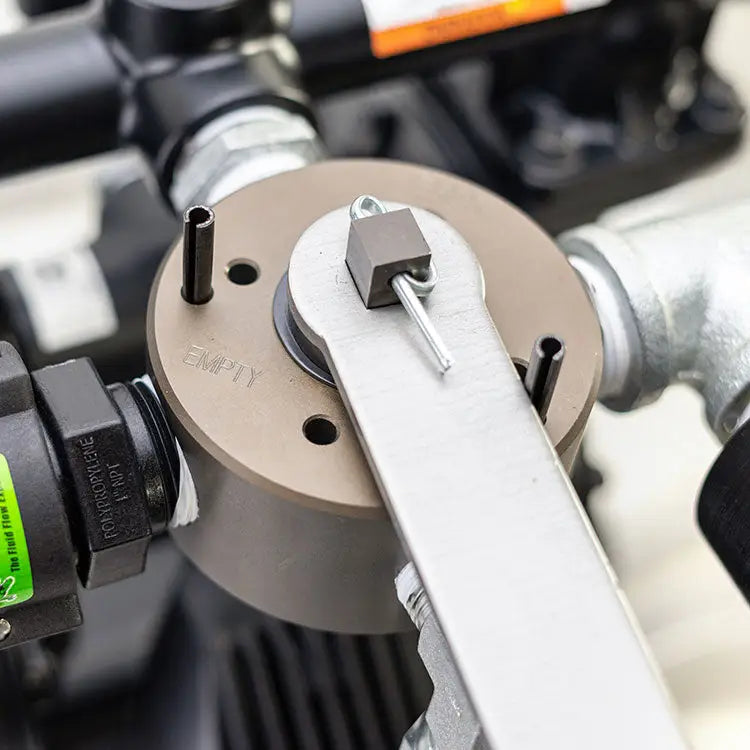

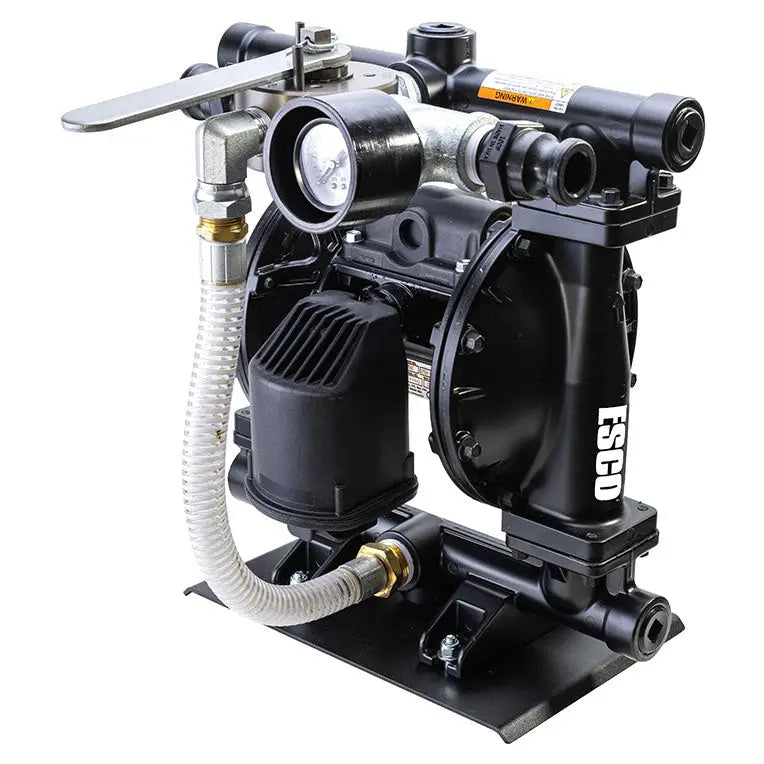

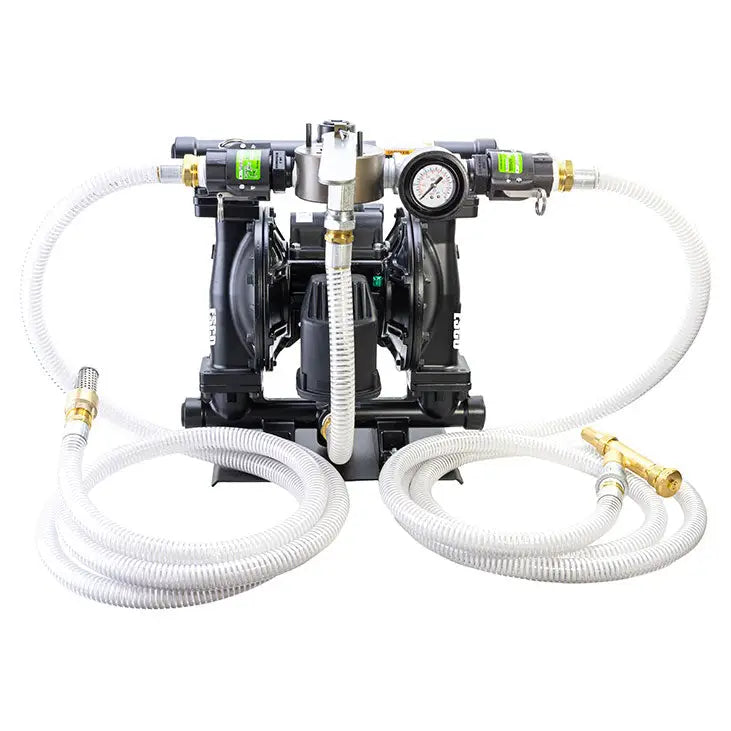

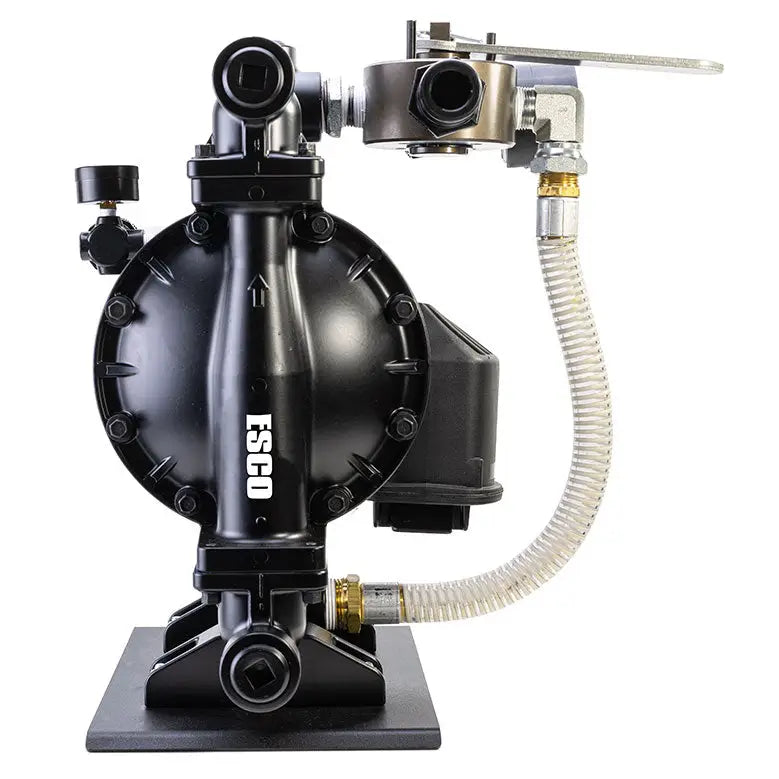

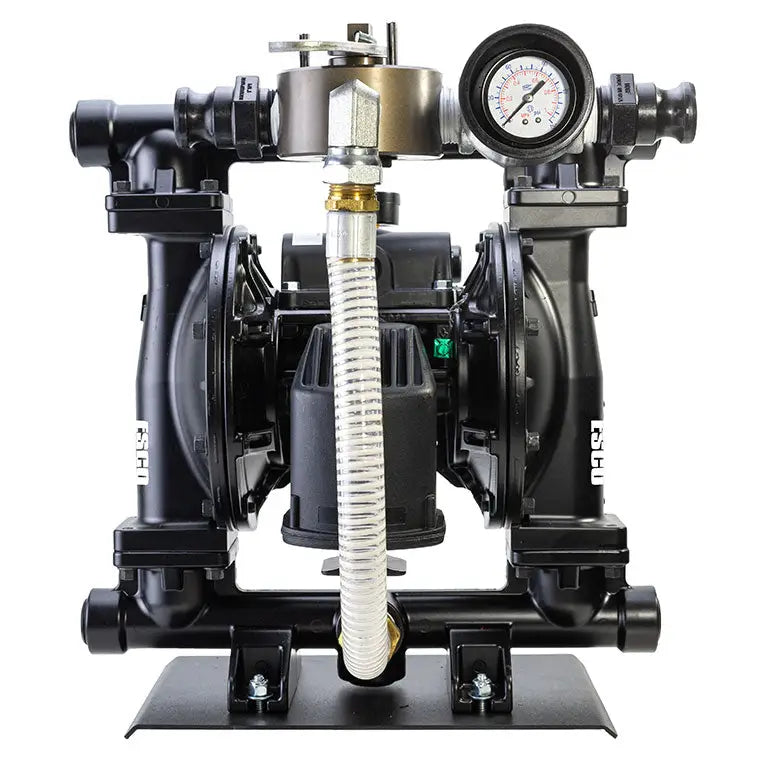

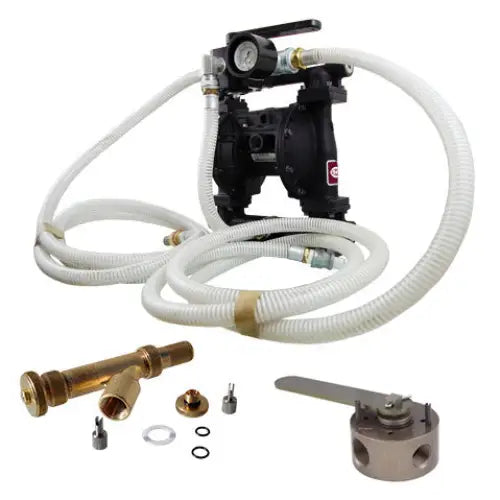

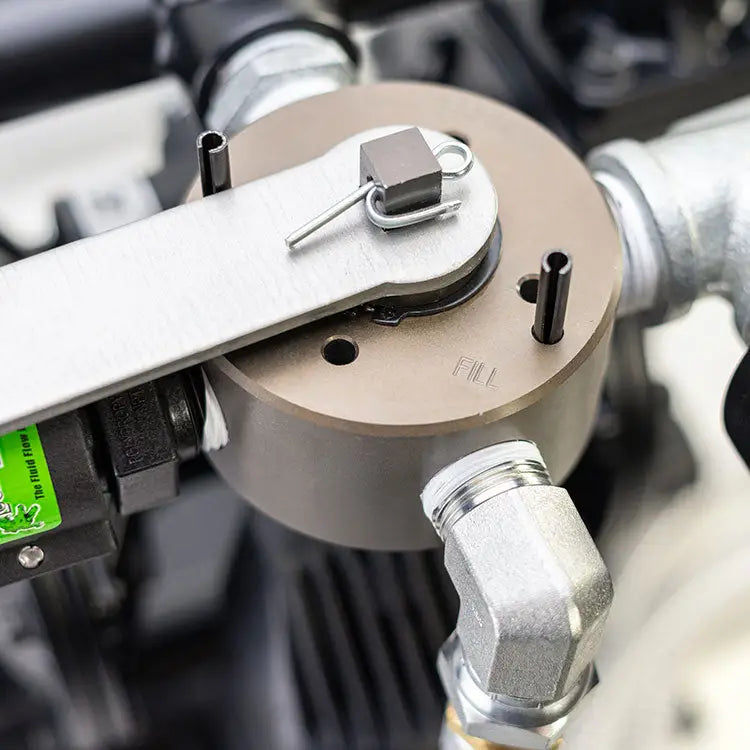

The ESCO Calcium Chloride Liquid Transfer Pump is designed to transfer up to 50 gallons per minute transferring fluid from one container to another quickly and easily. Works with multiple fluid applications including calcium chloride, water, methanol, oil, anti-freeze, coolants, tire liquids, and more. The design and functionality of Model 10543 are specifically designed for transferring calcium chloride or other mediums into tire/wheel assemblies to aid in creating ballast with the tire/wheel. Fully assembled and ready to use out of the box, this kit includes two 10 ft. hoses, a liquid ejector gun, quick safety-connection "cam-locks", a 4-way metal control valve, and an air regulator.

Features:

Portable and mountable liquid transfer pump designed to be used for transferring calcium chloride or
other mediums into larger tire/wheel assemblies to help support ballast in the tire/wheel.
Heavy-Duty Lightweight construction - ideal for commercial use.
Fast & Reliable transfer of calcium chloride or other mediums - transfer up to 50 gallons per minute*

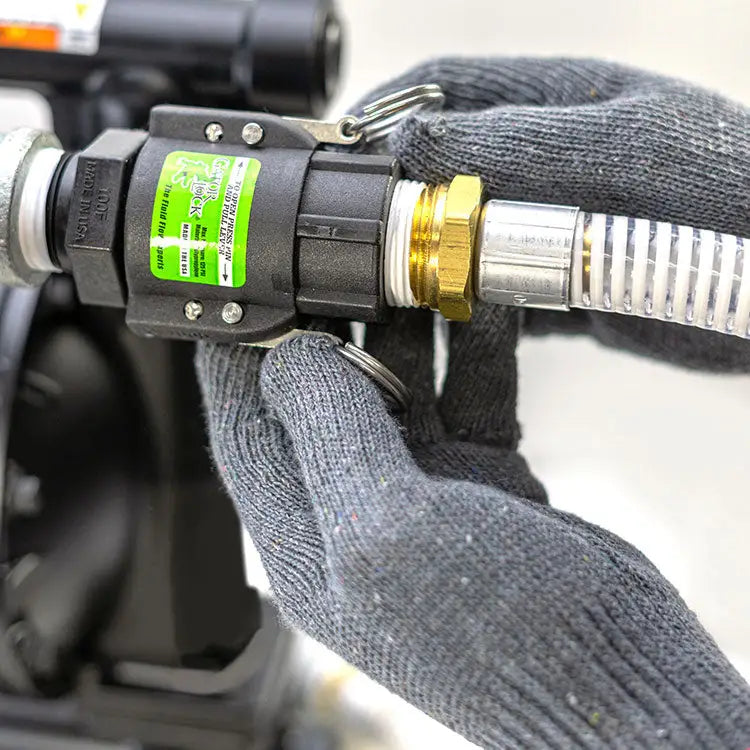

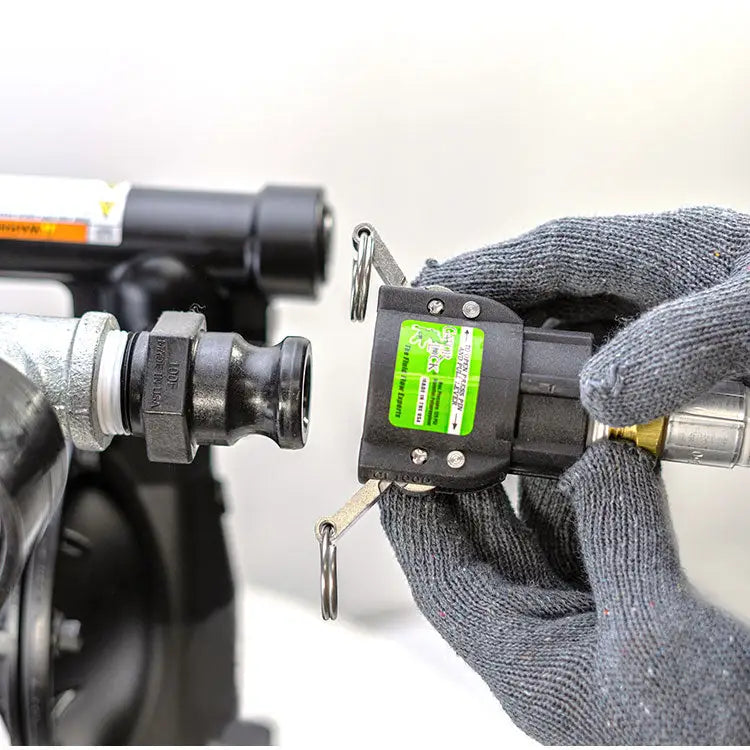

NEW Easy to use safety-secure quick connection "Cam-Lock" couplers on the hose ends for better transport, storage, and cleaning of hoses and unit - Extends the life of the hoses, pump, and accessories
One inch hose intake
Pump 1 to 1 ratio - designed to provide optimal output for evacuating and transferring liquids.
Fluid inlet and outlet ports 1 in. NPT

Specs:

Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: Geolast®
Center Section Material: Aluminum
Compatible Material: Calcium Chloride, Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
Connection Type: Threaded
Diaphragm Compatible Material: Geolast®
Diaphragm Material: Geolast®
Fluid Inlet Size (in): 1
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (in): 1
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: Aluminum
Manifold Configuration: Center Port, End Port
Manifold O-Ring Material: PTFE
Material: Aluminum
Max Air Consumption (SCFM): 67
Max Air Pressure (MPa): 0.86
Max Air Pressure (psi): 125
Max Cycle Rate (CPM): 280
Max Flow Rate (GPM): 50
Max Fluid Pressure (MPa): 0.86
Max Fluid Pressure (psi): 125
Max Operating Temperature (°F): 150
Max Solid Size (in): 0.125
Overall Height (in): 15.9
Power Source: Air
Seat Material: Geolast®
Standards Met: ATEX, CE
Type: Pneumatic Diaphragm Pump
Weight (lb): 23
Wetted Material: Aluminum, Geolast, PTFE
