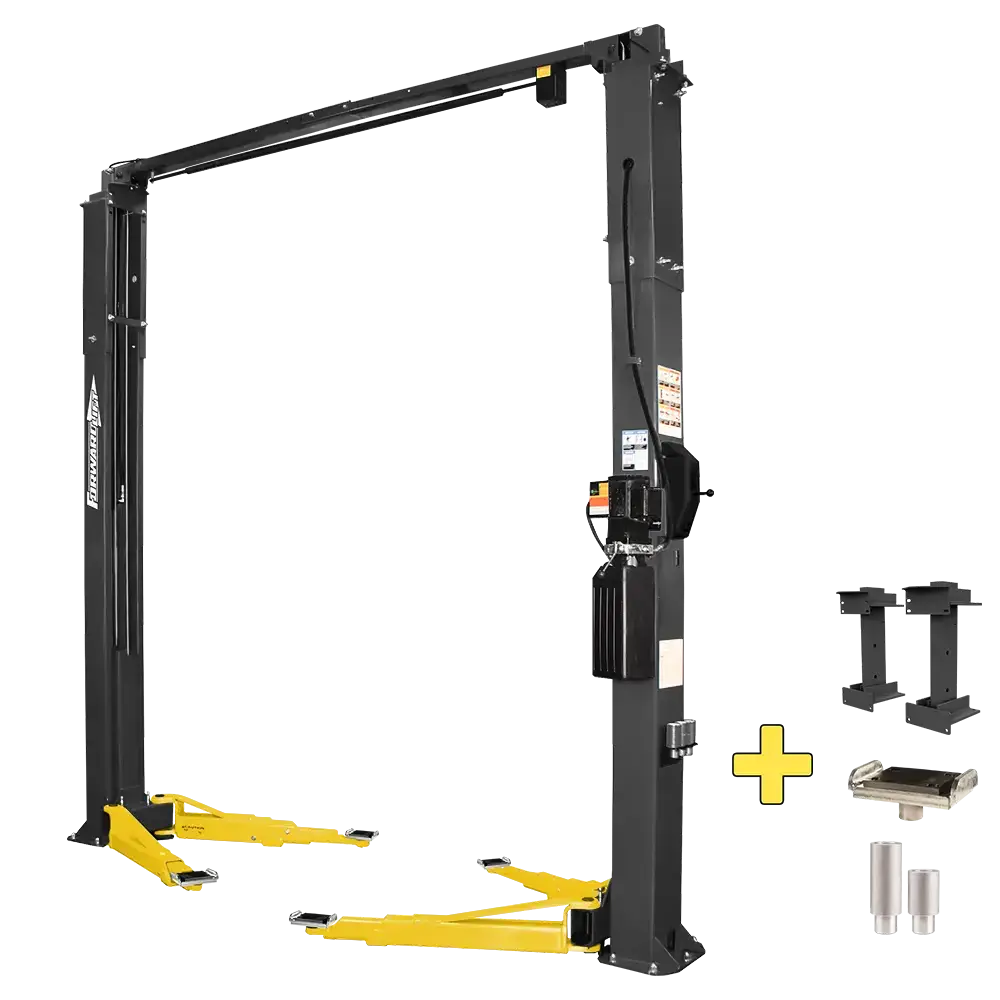

Forward Lift F10 10,000 lb Capacity Symmetric Two Post Car Lift - Heavy Duty Auto Repair Shop Equipment for Vehicle Maintenance & Tire Service

$2692.25

$4895

Safe 45%

Forward Lift F10 10,000 lb Capacity Symmetric Two Post Car Lift - Heavy Duty Auto Repair Shop Equipment for Vehicle Maintenance & Tire Service

Forward Lift F10 10,000 lb Capacity Symmetric Two Post Car Lift - Heavy Duty Auto Repair Shop Equipment for Vehicle Maintenance & Tire Service

$2692.25

$4895

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

10 people viewing this product right now!

SKU: 72381019

Guranteed safe checkout

Description

Forward F10 is a light-duty 10,000 lbs. capacity two-post lift. It is designed to perform and build to last. Featuring a Symmetrical column design and a frame engaging rubber padded truck adapters with multiple adapter extensions to raise most vehicles on the road today. Includes four of each of the following extensions: 3.5″ and 5″.

Features:

10,000 lbs. capacity for raising most passenger cars, trucks, and vans.
Third-party tested by ETL and approved by ALI.
3-stage front and 2-stage rear arms
Adapter storage bracket kit
Hydraulic cylinders in each column: Direct pull lifting technology; Top mounted; Full stroke; Cylinder rod concealed inside carriage

Specs:

Capacity: 10,000lbs
Max. Rise w/5in extension: 76-1/4in (1937mm)
Overall Height: 143in (3632mm)
Overall Width: 131in or optional 137in (3327mm / 4380mm)
Drive through clearance: 99in or optional 105in (2515mm / 2667mm)
Overhead switch height: 137-5/8in (3496mm)
Front reach (Min/Max): 24-1/2in / 44-3/8in (621mm / 1127mm)
Rear reach (Min/Max): 36in / 58in (914mm / 1473mm)
Min/Max Adapter Height:
- 3-3/4in (95mm) no adapter extension
- 8-3/4in (222mm) w/5in adapter extension
Width Inside Column: 109in or optional 115in (2769mm / 2921mm)
Adapter Heights: 3-1/2in and 5in
Voltage/Amps: 208 / 230, 15 amps; 208/230, 16 amps
Motor: 1ph*/2HP/50Hz; 1ph*/2HP/60Hz
Ceiling height required: 144in (3658mm)
Color: Black
*3-phase available at additional cost

Application:

Repair Shops
Car Dealer Ship
Bodyshops
Home Garage
Truck Facility

Includes:

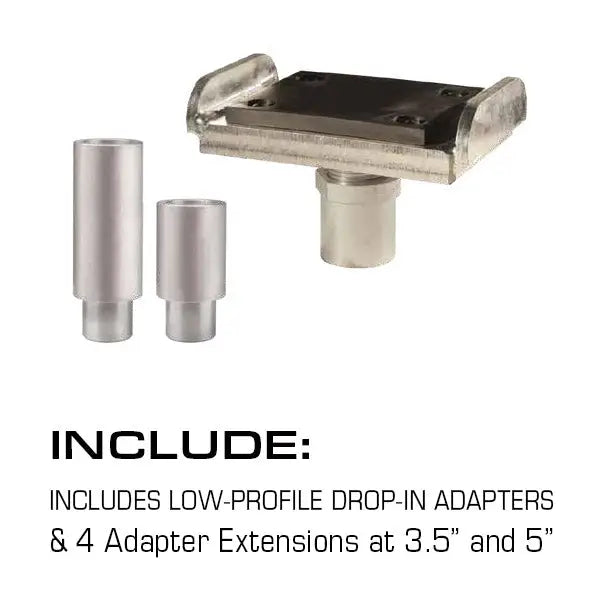

Low-Profile Adapters
4 x 3.5in Extensions
4 x 5in Extension
