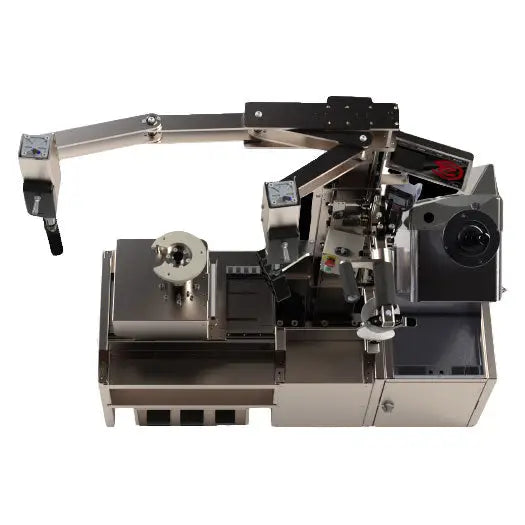

We are introducing the all-new ecube - the next generation of mobile tire servicing machines. We've taken everything our customers loved about the previous model and made it even better. This machine is loaded with features to make your life easier, including a semi-automatic tire changer, 2D wheel balancer, silenced air compressor, and 48V Smart Lithium battery bank. The multi-function touch screen display makes getting the job done right easier. Get the ecube today and make your life on the road a breeze.
Features:

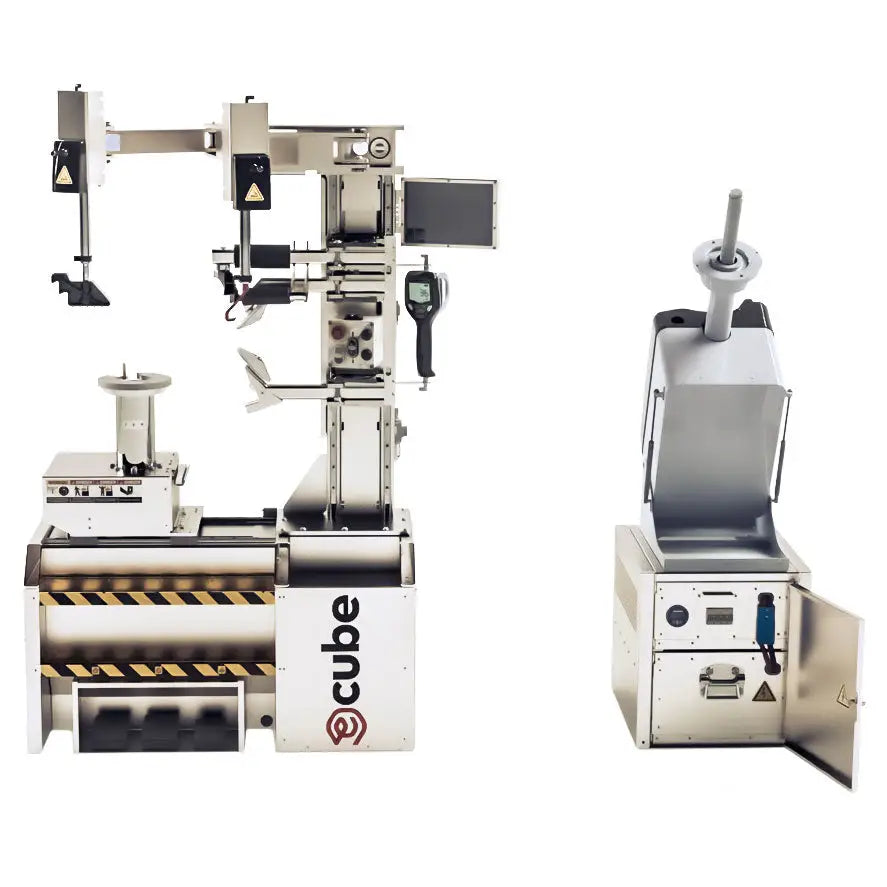

Modular Design- Every Ecube frame can be separated.
- Two-thirds of the frame contains the tire changer and stores the compressor.
- The remaining part of the frame contains the balancer, battery box, and battery charging monitoring box.
- This allows flexibility and compatibility with each country's favored sliding door position.

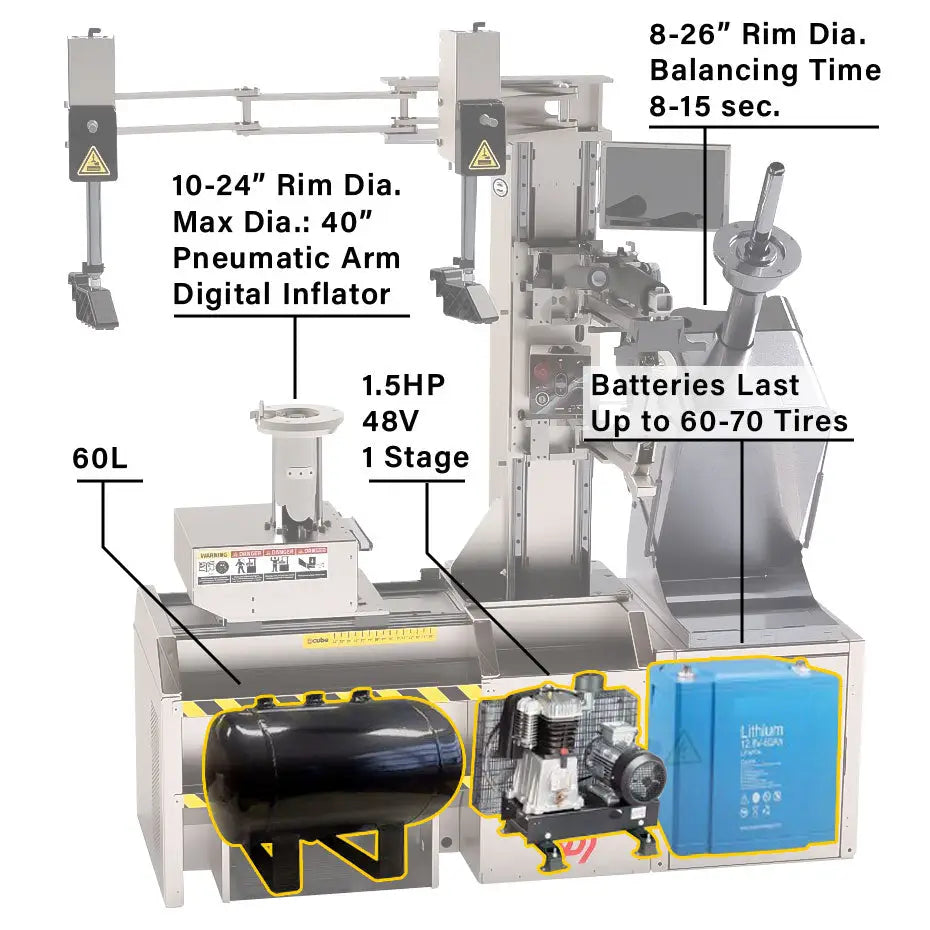

All-In-1 Design- Compressed air
- 48V lithium power (A grade)
- Tire changer
- Wheel balancer
- Haweka centering
- Digital tire inflator
- PC with Touch Screen
- AC/DC, DC/DC, and optional solar charge
- Camera
Lever & Lever-Less Operation- No longer does a technician have to choose between a lever-operated or lever-less tire changing unit, as both advantages are combined in the new patented "In-Control" system.
- This air-operated hook solidly grabs the tire and moves along with the wheel during its rotation.
- Throughout the entire process, the operator has complete control of the position and height of the hook to provide a smooth and safe release of the upper bead with minimal friction on the tire's inner liner.
Noise, Fume & Fuel Free- No more idling engines while servicing your anywhere/anytime customers!
- The ecube is completely noise-free, fume-free, and fuel-free.
Specs:
Dimensions (l*w*h):
- Tire Changer: 1040mm * 570mm * 1680-1800mm
- Tire Balancer + Battery Unit: 466mm * 570mm * 495mm
Weight: 440 Kg
Tire Changer: 48v Semi-automatic 10in-24in (max. Wheel Ø 43in)

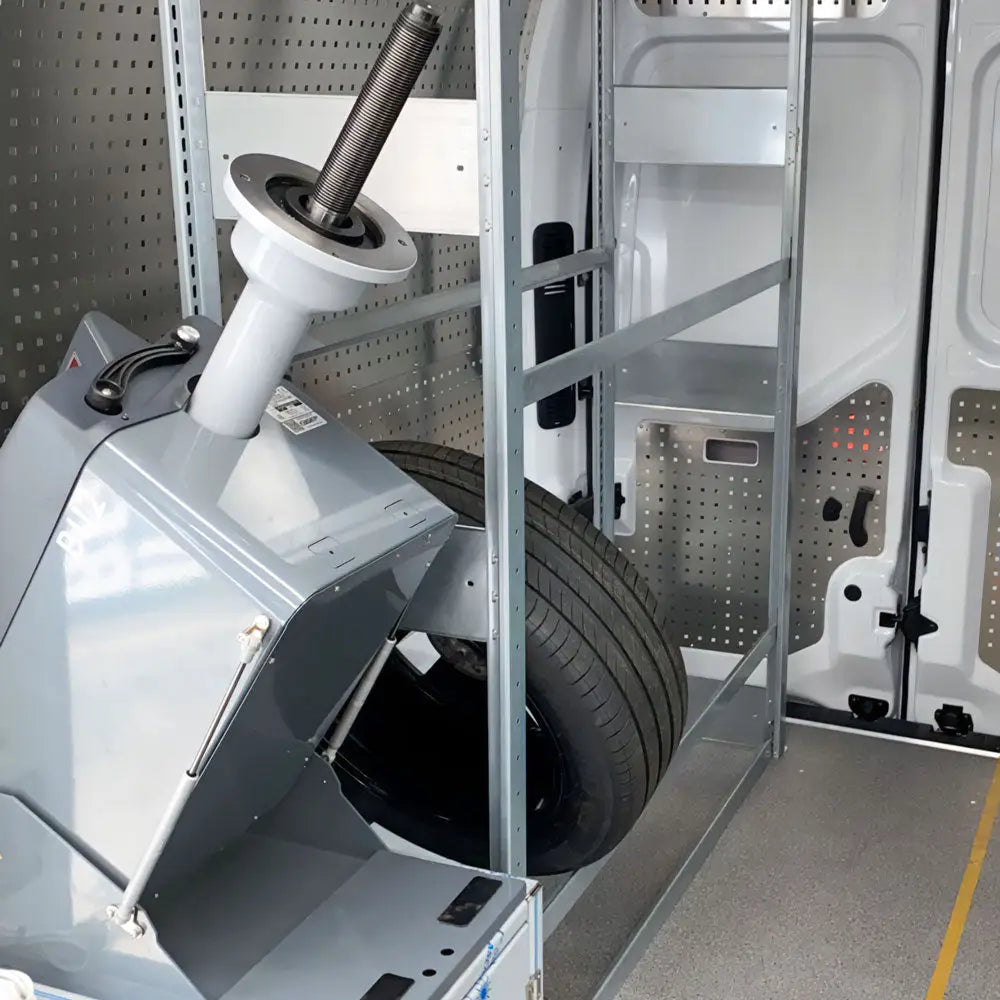

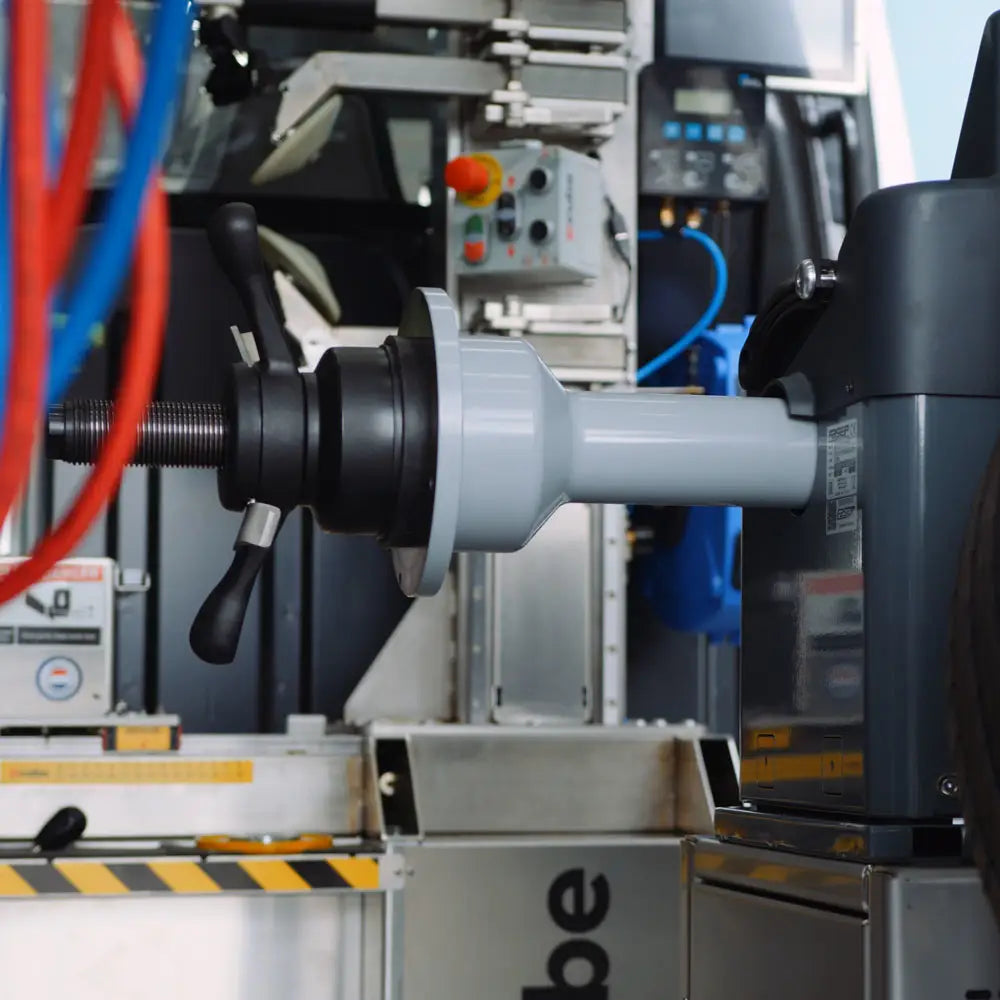

Wheel Balancer
- Motorized 2d 10in-26in Digital Balancer (made In Italy)
- 98 RPM, 3 Sensor, 3 Cones 42-111,5 Mm, Electronic Brake
Battery Pack: 48v Lithium Lifep04 110ah / 5,63kw
Inverter: 48v/230v Pure Sine 1200va
Touchscreen
- HDMI Lcd 10.1 Inch Ips 1280x800 Capacitive Touchscreen
- Camera Live Feed
- Battery And Inverter Status
- Battery Consumption & History
- Service Page With Manuals, Videos, Troubleshooting
- Optional Page For Ev Emergency Charge System
Inflation: Digital With Start/stop Function
Pneum. Helper Arm: Yes (Adjustable Height)
In-control Pneum. Helper Arm: Optional
Dual Computer System: Yes
Motor Control
- Micro Computer - Atmel At Mega 32u4 16mhz
- Crystal Oscillator 8-bit Resolution
Central Control
- Micro Computer
- Core 64-bit Processor Clocked At 1.4 GHz, 2GB Lpddr SDRA
Camera
Desc.: Mini Ccd/CMOS Hd Digital Camera 1080p
Solar Controller: Optional
Wifi (through Hotspot): Yes
Power Supply Charging Smart: AC - 48v - 8a / Dc - 48v - 10a
Power Supply Charging Combined: AC/DC - 48v - 18a
Power Pack Removable: Yes
Power Pack Multi-use: Usable As Portable Unit: 5.63 KW
Power Pack Protection: For Flow Discharge And Overcharge
Tire Changer
Rim Diameter: 10in - 24in
Total Tire Diameter
- Rim 24in: 43in
- Rim 23in: 42in
- Rim 22in: 41in
- Rim 21in: 40in
- Rim 20in: 39in
- Rim 19in: 38in
- Rim 18in: 37in
- Rim 17in: 36in
- Rim 16in: 35in
- Rim 15in: 34in
- Rim 14in: 33in
- Rim 13in: 32in
- Rim 12in: 31in
- Rim 11in: 30in
- Rim 10in: 29in
Wheel Width: 2in - 19in
Bead Press System: Upper And Lower Bead Press By Roller

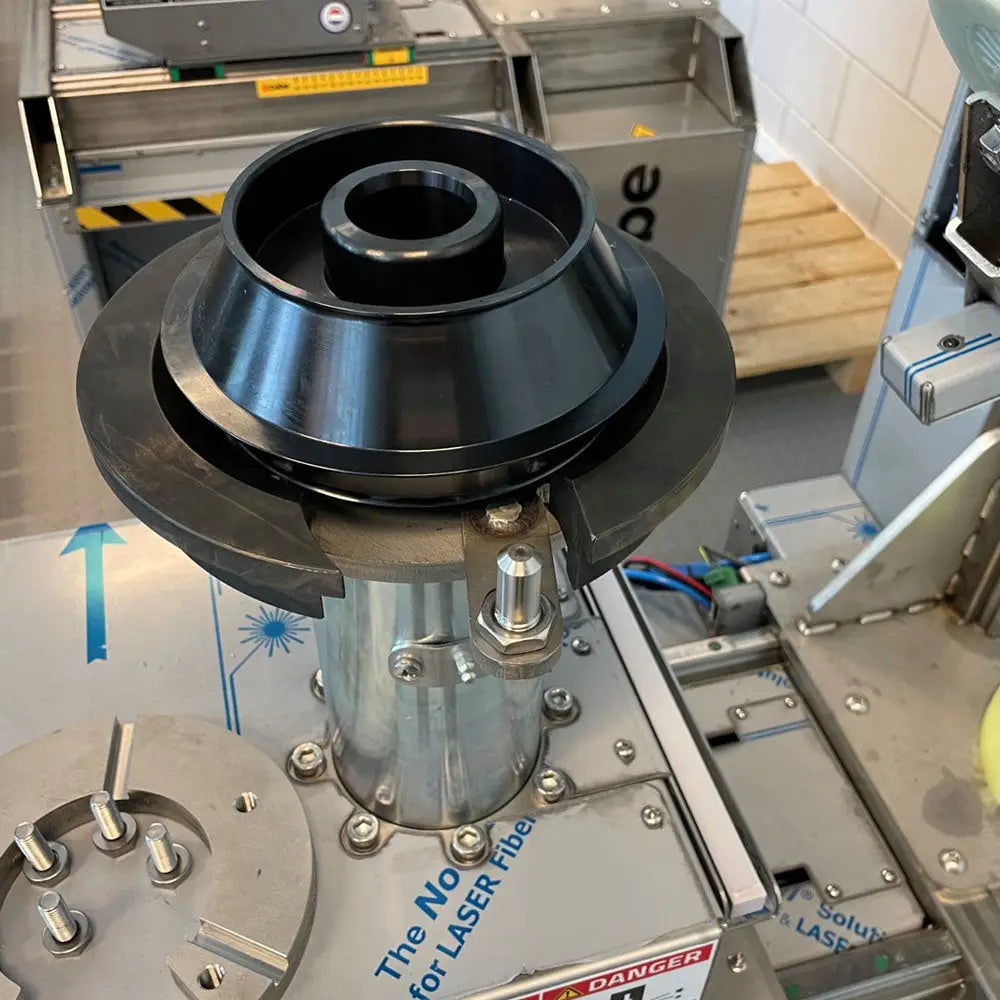

Clamping System Tire Changer: Clamping With Pneumatic Spindle & Haweka Quick Nut
Clamping System Balancer: Clamping With Spindle, Cones & Haweka Quick Nut
Rotating Spindle Speed: 1 - 15 RPM
Rotating Spindle Force: 800nm
Soft Start: Yes
Inverter Motors: Yes
Gearbox: Made In Italy
Compressor
Desc: 48v - 2 Cylinder 1.5 Hp Belt Driven
Air Tank Capacity: 60l
Air Pressure: 9 Bar
Air Flow Pump Out: 284 L/pm
Noise Volume: 69 Db. (a)
